Show details

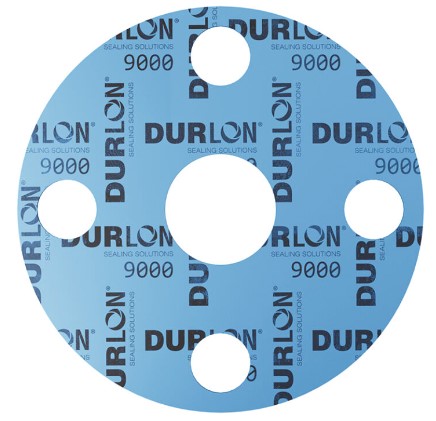

The product Durlon 9000 (2 mm) made by Durlon is a gasket out of the category Non-metallic flat gaskets with or without inserts (EN 1514-1). The data of this gasket was published at 2020-12-22. Gasket data was determined according to DIN EN 13555 2014-7.

Certificates and Admissions

•  ABS    Show file   Others

Specification

• Manufacturer: Durlon
• Trade name: Durlon 9000
• Type: Non-metallic flat gaskets with or without inserts
• Manufacturing standard: DIN EN 1514-1 1997-8
• Gasket height: 2 mm

Test details

• Test standard: DIN EN 13555 2014-7
• Tested size: DN40/PN40
• Simulated test stiffness: 500 kN/mm
• Geometric dimensions: 92 x 49 mm
• Surface area: 4196 mm²
