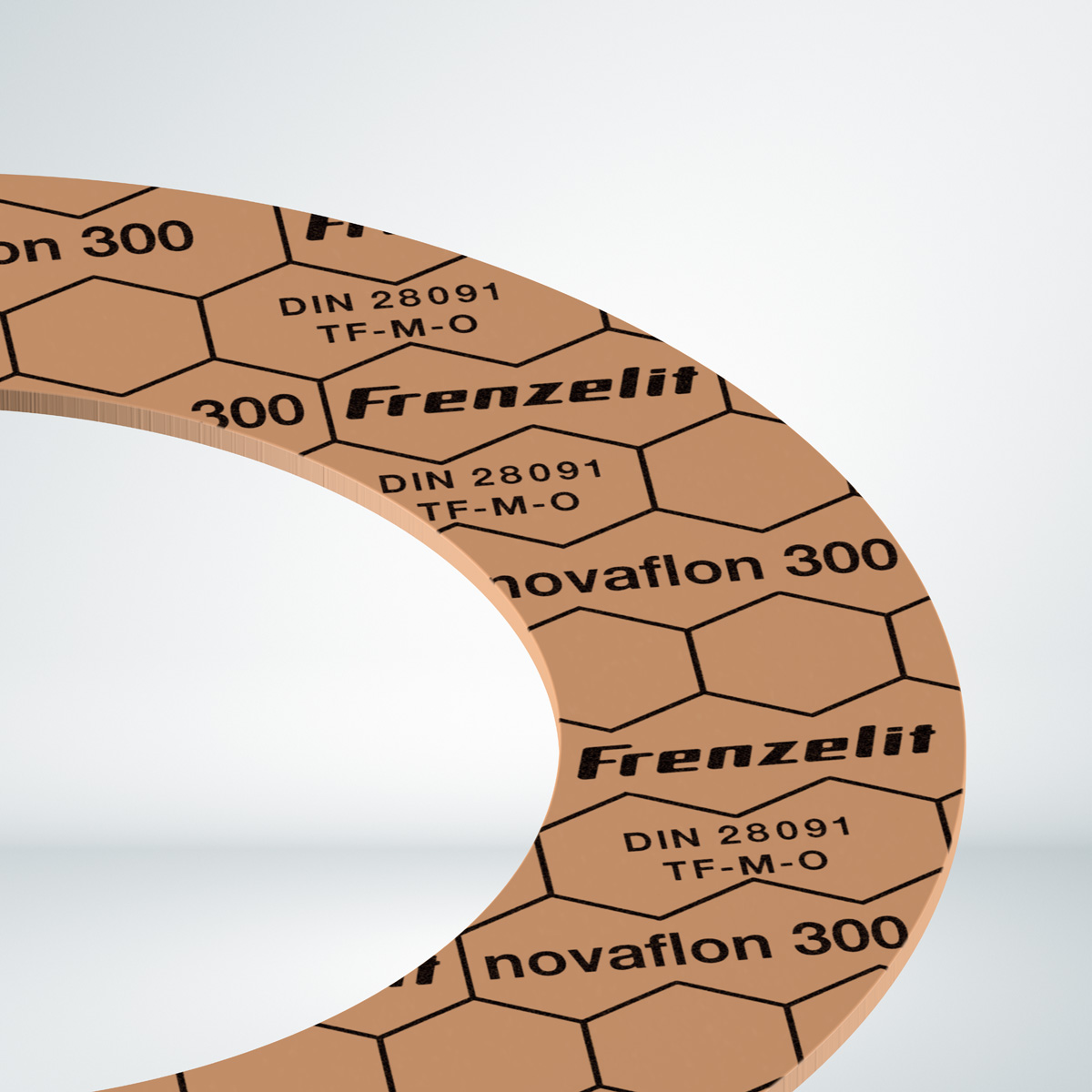

The product novaflon 300 (2 mm) made by Frenzelit GmbH is a gasket out of the category Non-metallic flat gaskets with or without inserts (EN 1514-1). The data of this gasket was published at 2022-01-11. Gasket data was determined according to EN 13555 2021-4.

Certificates and Admissions

No admissions or certifications found

Specification

• Manufacturer: Frenzelit GmbH
• Trade name: novaflon 300
• Type: Non-metallic flat gaskets with or without inserts
• Manufacturing standard: DIN EN 1514-1 1997-8
• Gasket height: 2 mm

Test details

• Test standard: EN 13555 2021-4
• Tested size: DN40/PN40
• Simulated test stiffness: 500 kN/mm
• Geometric dimensions: 92 x 49 mm
• Surface area: 4198 mm²
