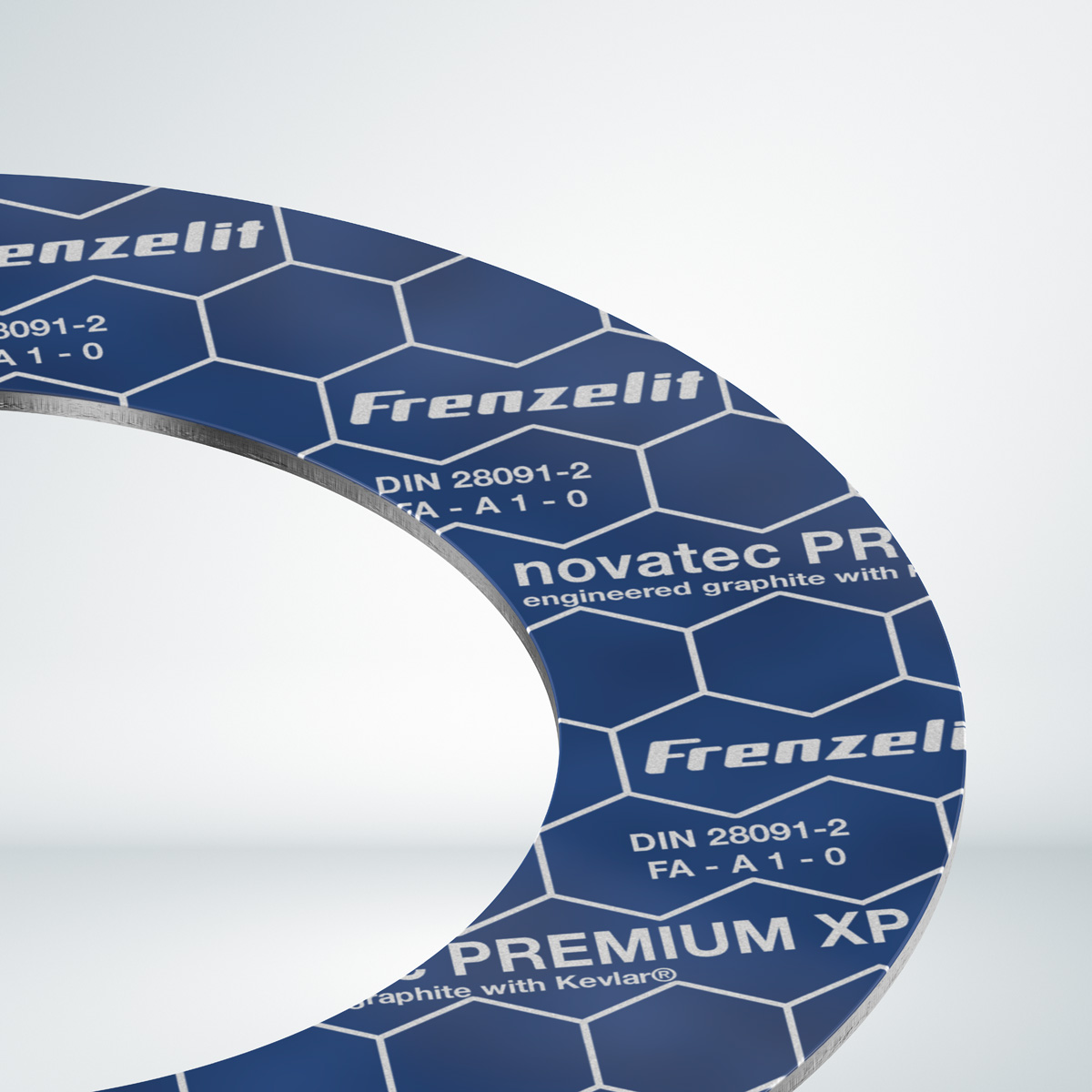

The product novatec PREMIUM XP (2 mm) made by Frenzelit GmbH is a gasket out of the category Non-metallic flat gaskets with or without inserts (EN 1514-1). The data of this gasket was published at 2013-07-03. Gasket data was determined according to DIN EN 13555 2005-2.

Certificates and Admissions

•  GL    Show file   Others
•  SVGW    Show file   Others
•  BAM    Show file   Others
•  DVGW DIN3535-6    Show file   Others
•  EC 1935/2004    Show file   Others
•  KTW    Show file   Others
•  VP401    Show file   Others
•  DVGW W270    Show file   Others
•  WRAS    Show file   Others

Specification

• Manufacturer: Frenzelit GmbH
• Trade name: novatec PREMIUM XP
• Type: Non-metallic flat gaskets with or without inserts
• Manufacturing standard: DIN EN 1514-1 1997-8
• Gasket height: 2 mm

Test details

• Test standard: DIN EN 13555 2005-2
• Tested size: DN40/PN40
• Simulated test stiffness: 500 kN/mm
• Geometric dimensions: 92 x 49 mm
• Surface area: 4196 mm²
