Show details

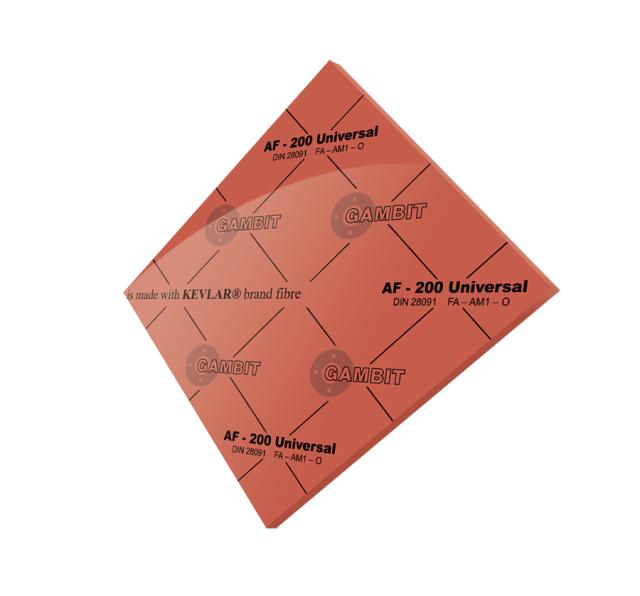

The product AF-200 Universal (2 mm) made by Gambit Lubawka Sp. z o.o. is a gasket out of the category Non-metallic flat gaskets with or without inserts (EN 1514-1). The data of the first version of the gasket data, published at 2012-05-16, is shown here. A newer revision, revision number 2, published at 2014-04-16, is available! Gasket data was determined according to DIN EN 13555 2005-2.

Certificates and Admissions

•  INIG    Show file   Others
•  TA Luft    Show file   Others
•  DVGW DIN3535-6    Show file   Others
•  GL    Show file   Others
•  DVGW DIN3535-6    Show file   Others

Specification

• Manufacturer: Gambit Lubawka Sp. z o.o.
• Trade name: AF-200 Universal
• Type: Non-metallic flat gaskets with or without inserts
• Manufacturing standard: DIN EN 1514-1 1997-8
• Gasket height: 2 mm

Test details

• Test standard: DIN EN 13555 2005-2
• Tested size: DN40/PN40
• Simulated test stiffness: 500 kN/mm
• Geometric dimensions: 92 x 49 mm
• Surface area: 4196 mm²
