Show details

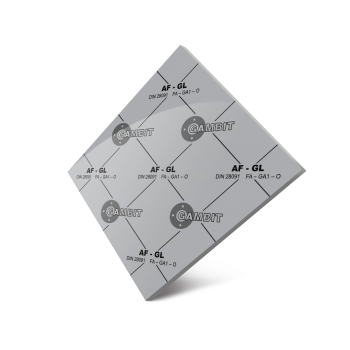

The product AF-GL (2 mm) made by Gambit Lubawka Sp. z o.o. is a gasket out of the category Non-metallic flat gaskets with or without inserts (EN 1514-1). The data of this gasket was published at 2015-11-05. Gasket data was determined according to DIN EN 13555 2014-7.

Certificates and Admissions

•  GL    Show file   Others
•  Fire Resistance ISO 19921    Show file   Others

Specification

• Manufacturer: Gambit Lubawka Sp. z o.o.
• Trade name: AF-GL
• Type: Non-metallic flat gaskets with or without inserts
• Manufacturing standard: DIN EN 1514-1 1997-8
• Gasket height: 2 mm

Test details

• Test standard: DIN EN 13555 2014-7
• Tested size: DN40/PN40
• Simulated test stiffness: 500 kN/mm
• Geometric dimensions: 91 x 49 mm
• Surface area: 4196 mm²
