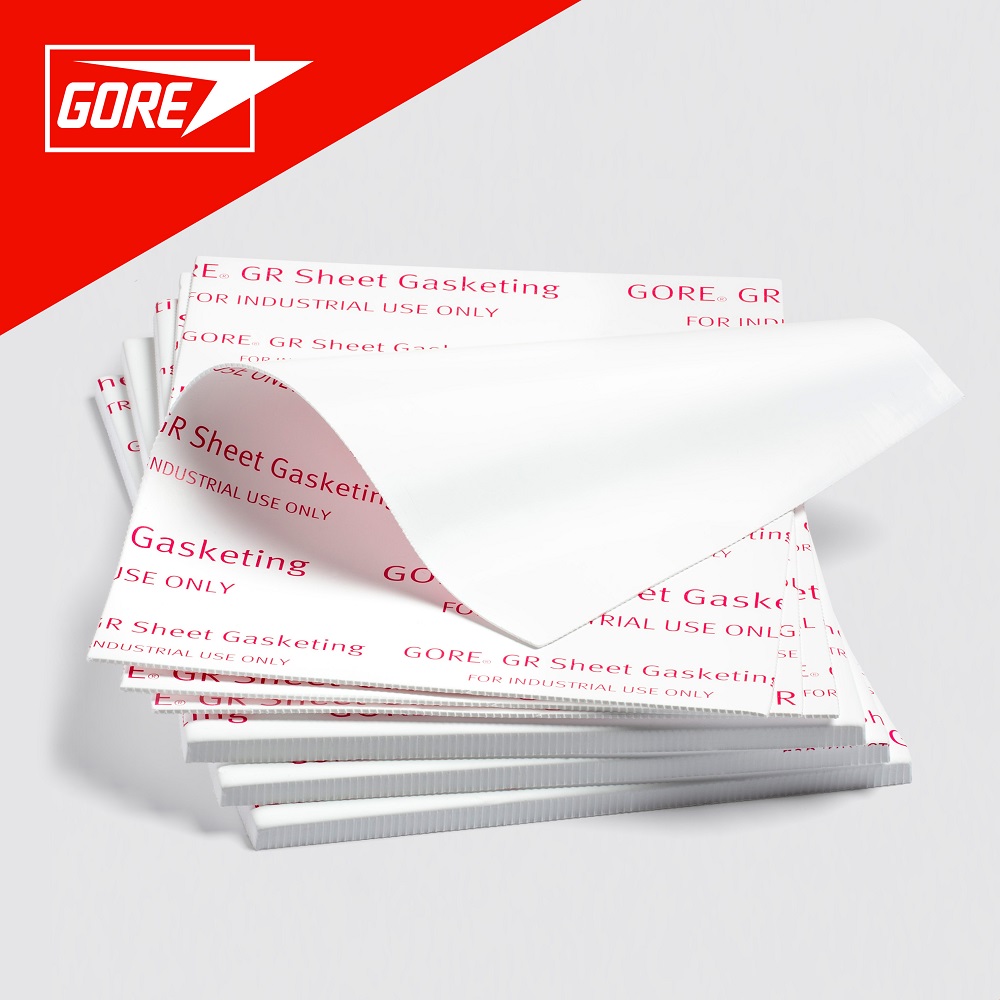

GORE® GR Sheet Gasketing (1.5 mm)

W. L. Gore & Associates GmbH

The product GORE® GR Sheet Gasketing (1.5 mm) made by W. L. Gore & Associates GmbH is a gasket out of the category Non-metallic flat gaskets with or without inserts (EN 1514-1)... Show details

Revision information


Show details

The product GORE® GR Sheet Gasketing (1.5 mm) made by W. L. Gore & Associates GmbH is a gasket out of the category Non-metallic flat gaskets with or without inserts (EN 1514-1). Data of revision 2, published at 2016-02-02, is shown here. A newer revision, revision number 4, published at 2022-09-12, is available! 2016-01-25 was the date of first publication. Gasket data was determined according to DIN EN 13555 2014-7.

Certificates and Admissions

 Show Search other products with admission

Specification

  • Manufacturer: W. L. Gore & Associates GmbH
  • Trade name: GORE® GR Sheet Gasketing
  • Type: Non-metallic flat gaskets with or without inserts
  • Manufacturing standard: DIN EN 1514-1 1997-8
  • Gasket height: 1.5 mm

Test details

  • Test standard: DIN EN 13555 2014-7
  • Tested size: DN40/PN40
  • Simulated test stiffness: 500 kN/mm
  • Geometric dimensions: 92 x 49 mm
  • Surface area: 4196 mm2

Gasket data

Loading, please wait...
