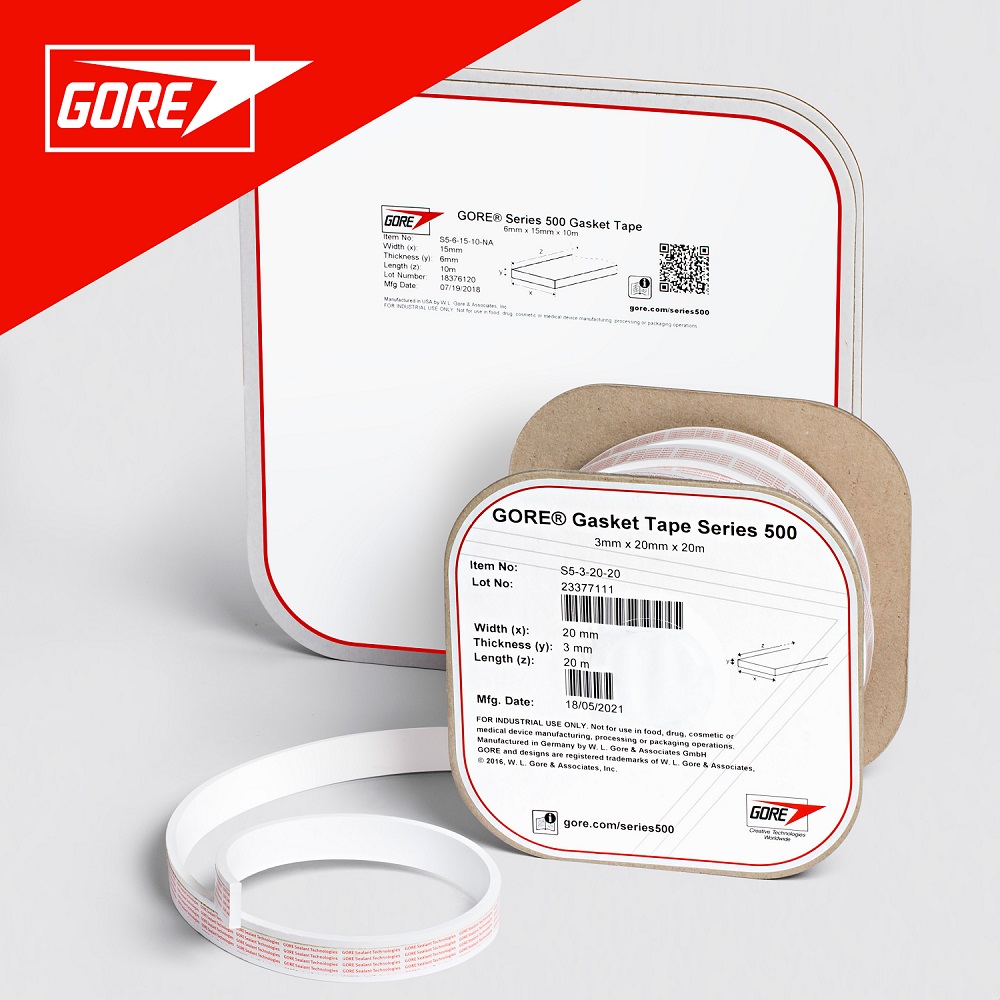

The product GORE® Gasket Tape Series 500 - 20mm width (3 mm) made by W. L. Gore & Associates GmbH is a gasket out of the category Non-metallic flat gaskets with or without inserts (EN 1514-1). The most recent data is shown here. This data was published at 2023-04-16 as revision 2. 2015-07-01 was the date of first publication. Gasket data was determined according to EN 13555 2021-4.

Certificates and Admissions

•  BAM    Show file   Others
•  BAM    Show file   Others
•  TA Luft + Blowout safety    Show file   Others
•  TA Luft + Blowout safety    Show file   Others

Specification

• Manufacturer: W. L. Gore & Associates GmbH
• Trade name: GORE® Gasket Tape Series 500 - 20mm width
• Type: Non-metallic flat gaskets with or without inserts
• Manufacturing standard: DIN EN 1514-1 1997-8
• Gasket height: 3 mm

Test details

• Test standard: EN 13555 2021-4
• Tested size: n/a
• Simulated test stiffness: 500 kN/mm
• Geometric dimensions: 140 x 100 mm
• Surface area: 7540 mm²
