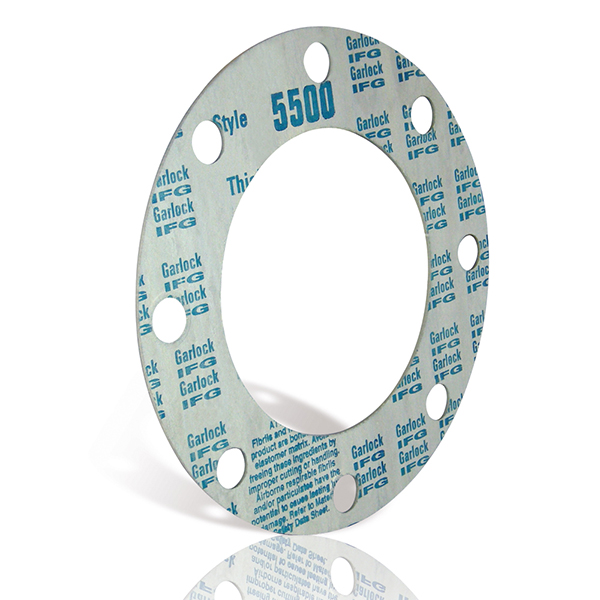

The product IFG® 5500 (2 mm) made by Garlock GmbH is a gasket out of the category Non-metallic flat gaskets with or without inserts (EN 1514-1). Data of revision 2, published at 2016-01-05, is shown here. A newer revision, revision number 4, published at 2021-03-24, is available! 2012-12-10 was the date of first publication. Gasket data was determined according to DIN EN 13555 2014-7.

Certificates and Admissions

•  TA Luft    Show file   Others
•  TA Luft    Show file   Others

Specification

• Manufacturer: Garlock GmbH
• Trade name: IFG® 5500
• Type: Non-metallic flat gaskets with or without inserts
• Manufacturing standard: DIN EN 1514-1 1997-8
• Gasket height: 2 mm

Test details

• Test standard: DIN EN 13555 2014-7
• Tested size: DN40/PN40
• Simulated test stiffness: 500 kN/mm
• Geometric dimensions: 92 x 49 mm
• Surface area: 4196 mm²
