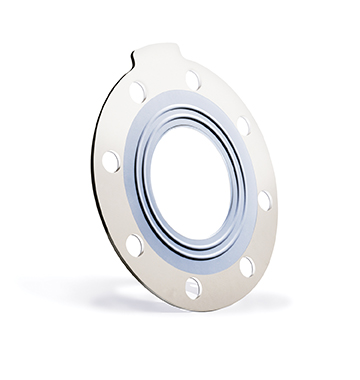

The product STRESS-SAVER® GYLON® 3504 (3.8 mm) made by Garlock GmbH is a gasket out of the category Non-metallic flat gaskets with or without inserts (EN 1514-1). The data of this gasket was published at 2022-03-15. Gasket data was determined according to EN 13555 2021-4.

Certificates and Admissions

•  FDA    Show file   Others
•  FDA    Show file   Others

Specification

• Manufacturer: Garlock GmbH
• Trade name: STRESS-SAVER® GYLON® 3504
• Type: Non-metallic flat gaskets with or without inserts
• Manufacturing standard: DIN EN 1514-1 1997-8
• Gasket height: 3.8 mm

Test details

• Test standard: EN 13555 2021-4
• Tested size: DN40/PN40
• Simulated test stiffness: 500 kN/mm
• Geometric dimensions: 92 x 48 mm
• Surface area: 4273 mm²
