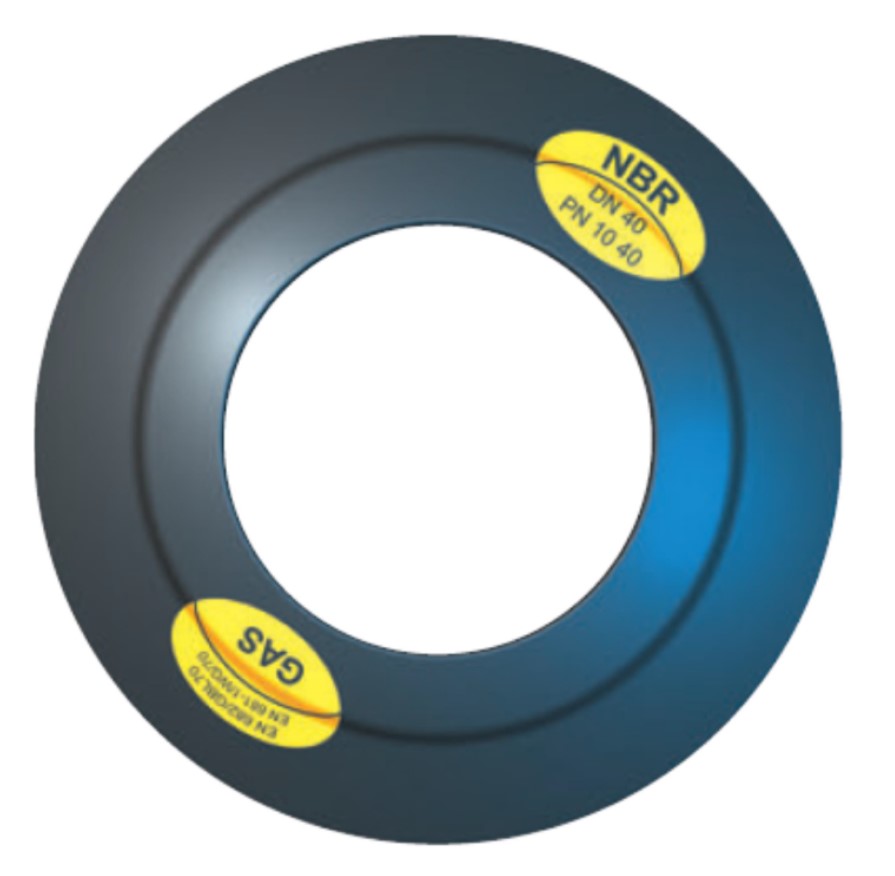

The product KGS G 2 NBR (compressed area 66 x 49) (3 mm) made by KLINGER GmbH is a gasket out of the category Non-metallic flat gaskets with or without inserts (EN 1514-1). The data of the first version of the gasket data, published at 2018-11-20, is shown here. A newer revision, revision number 2, published at 2019-08-10, is available! Gasket data was determined according to DIN EN 13555 2014-7.

Certificates and Admissions

•  REACH    Show file   Others
•  REACH    Show file   Others

Specification

• Manufacturer: KLINGER GmbH
• Trade name: KGS G 2 NBR (compressed area 66 x 49)
• Type: Non-metallic flat gaskets with or without inserts
• Manufacturing standard: DIN EN 1514-1 1997-8
• Gasket height: 3 mm

Test details

• Test standard: DIN EN 13555 2014-7
• Tested size: DN40/PN40
• Simulated test stiffness: 500 kN/mm
• Geometric dimensions: 92 x 49 mm
• Surface area: 1536 mm²
