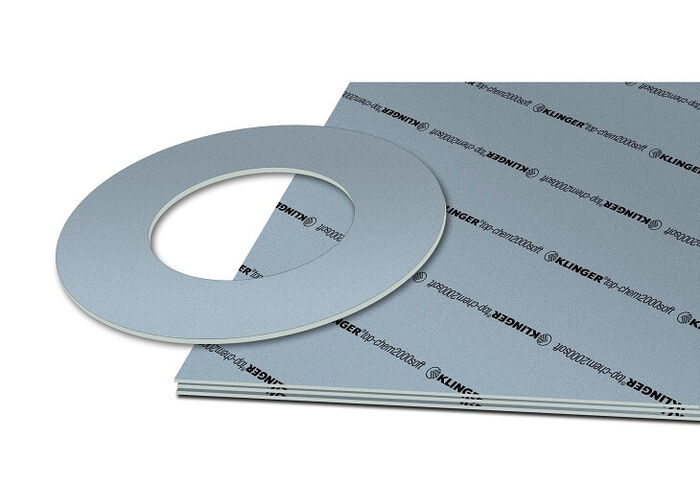

The product KLINGER® top-chem2000soft (2 mm) made by KLINGER GmbH is a gasket out of the category Non-metallic flat gaskets with or without inserts (EN 1514-1). The data of this gasket was published at 2017-09-11. Gasket data was determined according to DIN EN 13555 2014-7.

Certificates and Admissions

•  2003/11/EG    Show file   Others
•  76/769/EWG    Show file   Others
•  RoHS    Show file   Others
•  REACH    Show file   Others
•  2003/11/EG    Show file   Others
•  76/769/EWG    Show file   Others
•  REACH    Show file   Others
•  RoHS    Show file   Others
•  FDA    Show file   Others
•  TA Luft + Blowout safety    Show file   Others
•  EC 1935/2004    Show file   Others
•  SVHC    Show file   Others

Specification

• Manufacturer: KLINGER GmbH
• Trade name: KLINGER® top-chem2000soft
• Type: Non-metallic flat gaskets with or without inserts
• Manufacturing standard: DIN EN 1514-1 1997-8
• Gasket height: 2 mm

Test details

• Test standard: DIN EN 13555 2014-7
• Tested size: DN40/PN40
• Simulated test stiffness: 500 kN/mm
• Geometric dimensions: 92 x 49 mm
• Surface area: 4196 mm²
