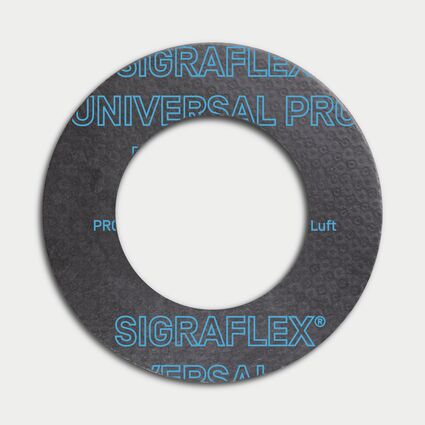

The product Sigraflex Universal Pro V30010C2I-P (3 mm) made by SGL Carbon GmbH is a gasket out of the category Non-metallic flat gaskets with or without inserts (EN 1514-1). The data of the first version of the gasket data, published at 2012-02-29, is shown here. A newer revision, revision number 2, published at 2017-01-24, is available! Gasket data was determined according to DIN EN 13555 2005-2.

Certificates and Admissions

No admissions or certifications found

Specification

• Manufacturer: SGL Carbon GmbH
• Trade name: Sigraflex Universal Pro V30010C2I-P
• Type: Non-metallic flat gaskets with or without inserts
• Manufacturing standard: DIN EN 1514-1 1997-8
• Gasket height: 3 mm

Test details

• Test standard: DIN EN 13555 2005-2
• Tested size: DN40/PN40
• Simulated test stiffness: 500 kN/mm
• Geometric dimensions: 92 x 49 mm
• Surface area: 4196 mm²
