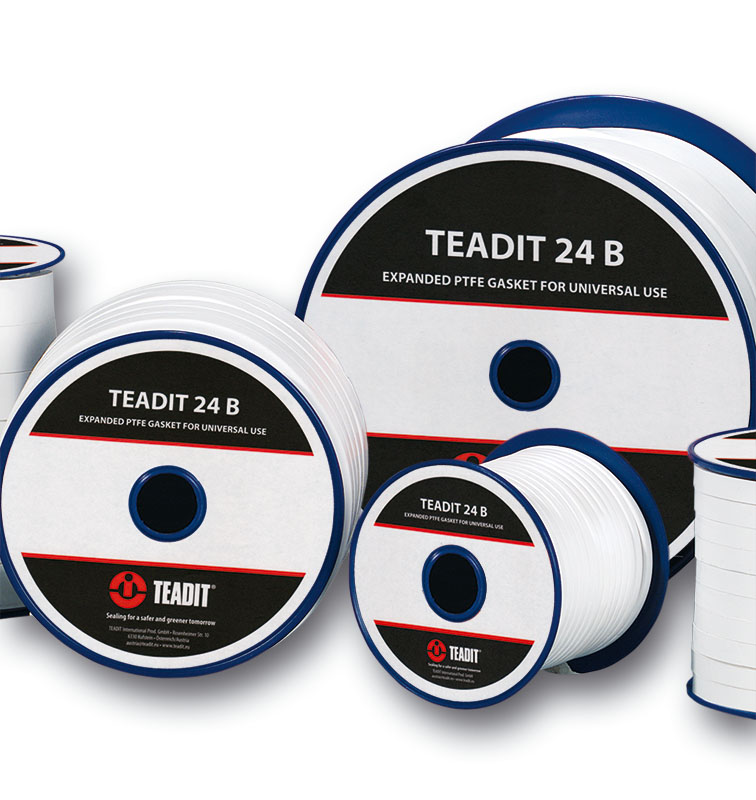

The product 24 B (2 mm) made by TEADIT International Produktions GmbH is a gasket out of the category Non-metallic flat gaskets with or without inserts (EN 1514-1). The data of the first version of the gasket data, published at 2016-11-18, is shown here. A newer revision, revision number 2, published at 2023-08-23, is available! Gasket data was determined according to DIN EN 13555 2014-7.

Certificates and Admissions

•  WRAS    Show file   Others
•  TA Luft    Show file   Others
•  BAM    Show file   Others
•  BAM    Show file   Others
•  DIN 30654    Show file   Others
•  FDA    Show file   Others
•  EC 1935/2004    Show file   Others
•  FDA    Show file   Others
•  EC 1935/2004    Show file   Others

Specification

• Manufacturer: TEADIT International Produktions GmbH
• Trade name: 24 B
• Type: Non-metallic flat gaskets with or without inserts
• Manufacturing standard: DIN EN 1514-1 1997-8
• Gasket height: 2 mm

Test details

• Test standard: DIN EN 13555 2014-7
• Tested size: n/a
• Simulated test stiffness: 500 kN/mm
• Geometric dimensions: 120 x 110 mm
• Surface area: 1806 mm²
