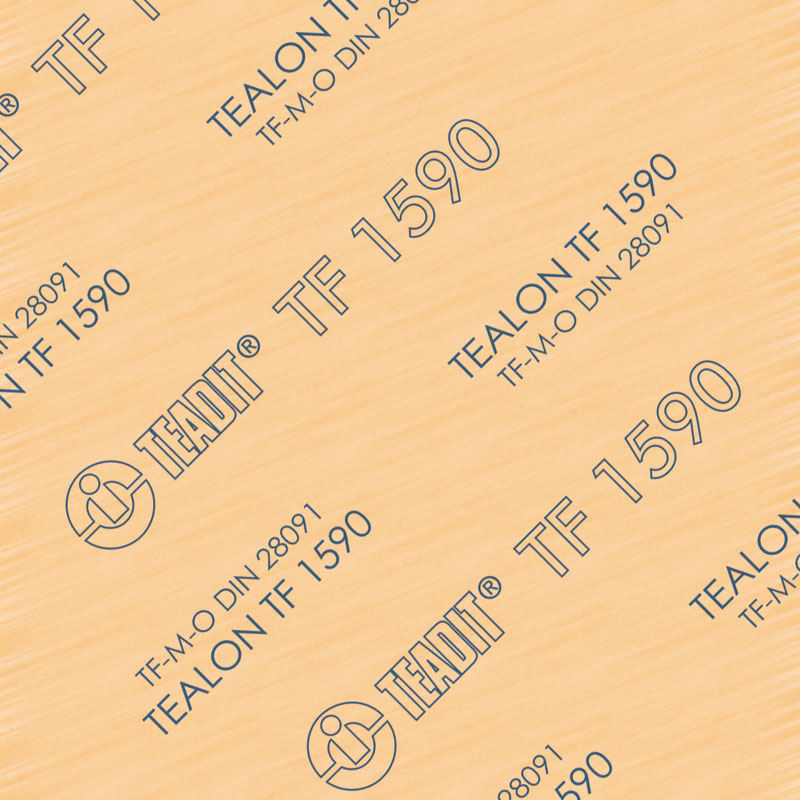

The product TF 1590 (3 mm) made by TEADIT International Produktions GmbH is a gasket out of the category Non-metallic flat gaskets with or without inserts (EN 1514-1). Data of revision 2, published at 2012-04-27, is shown here. A newer revision, revision number 4, published at 2023-11-17, is available! 2011-10-19 was the date of first publication. Gasket data was determined according to DIN EN 13555 2005-2.

Certificates and Admissions

•  Ausblassicherheit    Show file   Others
•  TA Luft    Show file   Others
•  DVGW DIN3535-6    Show file   Others
•  BAM    Show file   Others
•  BAM    Show file   Others
•  ROTT    Show file   Others
•  HOBT    Show file   Others
•  FDA    Show file   Others
•  EC 1935/2004    Show file   Others
•  FDA    Show file   Others
•  EC 1935/2004    Show file   Others
•  WRAS    Show file   Others

Specification

• Manufacturer: TEADIT International Produktions GmbH
• Trade name: TF 1590
• Type: Non-metallic flat gaskets with or without inserts
• Manufacturing standard: DIN EN 1514-1 1997-8
• Gasket height: 3 mm

Test details

• Test standard: DIN EN 13555 2005-2
• Tested size: DN40/PN40
• Simulated test stiffness: 500 kN/mm
• Geometric dimensions: 92 x 49 mm
• Surface area: 4196 mm²
