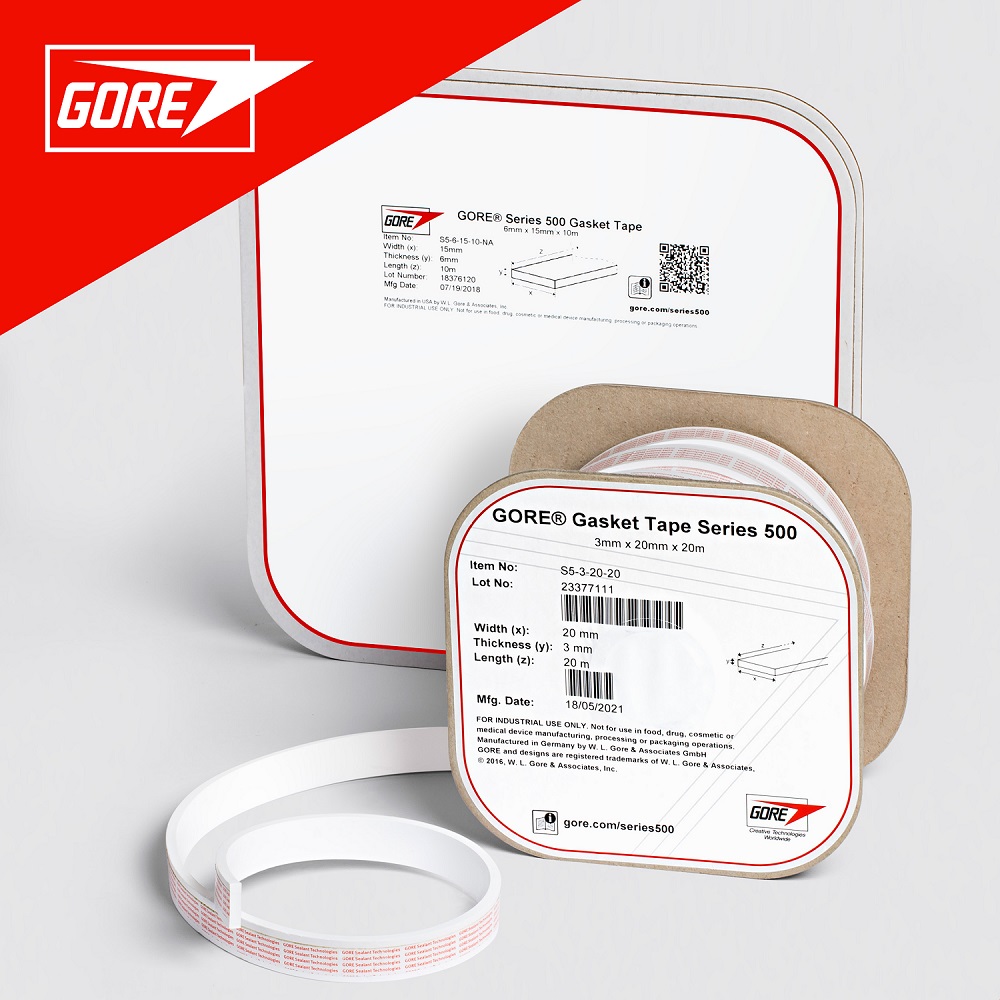

The product GORE® Gasket Tape Series 500 (6 mm) made by W. L. Gore & Associates GmbH is a gasket out of the category Non-metallic flat gaskets with or without inserts (EN 1514-1). The data of the first version of the gasket data, published at 2015-11-17, is shown here. A newer revision, revision number 2, published at 2023-04-16, is available! Gasket data was determined according to DIN EN 13555 2014-7.

Certificates and Admissions

•  BAM    Show file   Others
•  BAM    Show file   Others
•  TA Luft + Blowout safety    Show file   Others
•  TA Luft + Blowout safety    Show file   Others

Specification

• Manufacturer: W. L. Gore & Associates GmbH
• Trade name: GORE® Gasket Tape Series 500
• Type: Non-metallic flat gaskets with or without inserts
• Manufacturing standard: DIN EN 1514-1 1997-8
• Gasket height: 6 mm

Test details

• Test standard: DIN EN 13555 2014-7
• Tested size: n/a
• Simulated test stiffness: 500 kN/mm
• Geometric dimensions: 151 x 111 mm
• Surface area: 8231 mm²
